葉輪給料機
葉輪給料機也稱為星型卸料器、旋轉下料閥，內部有多個葉片的轉子，上部料倉的物料靠自重落下填充在葉片間的空隙中，物料隨轉子的旋轉在下部料口卸出。因轉子葉片間的空間是均勻一致的，轉子轉速既可以是恒速的，也可以是變速的，所以旋轉下料閥被廣泛的應用在環保、冶金、化工、糧食、水泥、筑路、等行業的粉狀、顆粒狀物料的卸料、供料和計量、配料的場合，更值得一提的是，隨著微電腦技術的發展，各行業對粉狀和顆粒狀物料的實時供給需求不斷增長，旋轉下料閥與變頻、調速裝置的結合成為實時供料的最理想方案。
Impeller feeder, also known as star discharger, rotary discharge valve, internal have multiple rotor blades, upper bin material by gravity fall in filling the gap between the blade, the material with the rotation of the rotor on the bottom material discharge.Because of the space between the rotor blade is uniform, the rotor speed may be either constant speed, can also be a variable, so under the rotating material valve is widely used in environmental protection, metallurgy, chemical industry, food, cement, road construction, and other industries of powdery and granular materials discharge, feeding and measuring, ingredients, more it is worth mentioning that with the development of microcomputer technology, real-time movements of powdery and granular materials in growing demand and supply, under the rotating material valve combined with variable frequency and speed regulating device to be the most ideal solution of real-time feed.
圓法蘭接口
Round flange interface
方法蘭接口
Square flange interface
Impeller feeder, also known as star discharger, rotary discharge valve, internal have multiple rotor blades, upper bin material by gravity fall in filling the gap between the blade, the material with the rotation of the rotor on the bottom material discharge.Because of the space between the rotor blade is uniform, the rotor speed may be either constant speed, can also be a variable, so under the rotating material valve is widely used in environmental protection, metallurgy, chemical industry, food, cement, road construction, and other industries of powdery and granular materials discharge, feeding and measuring, ingredients, more it is worth mentioning that with the development of microcomputer technology, real-time movements of powdery and granular materials in growing demand and supply, under the rotating material valve combined with variable frequency and speed regulating device to be the most ideal solution of real-time feed.
圓法蘭接口
Round flange interface
方法蘭接口
Square flange interface

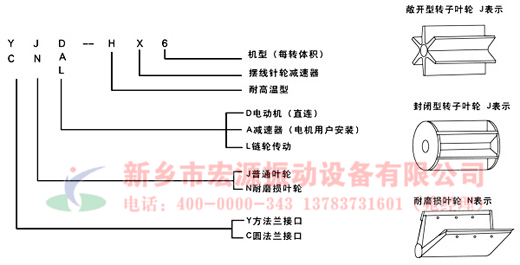

葉輪給料機型號含義
Types of meaning

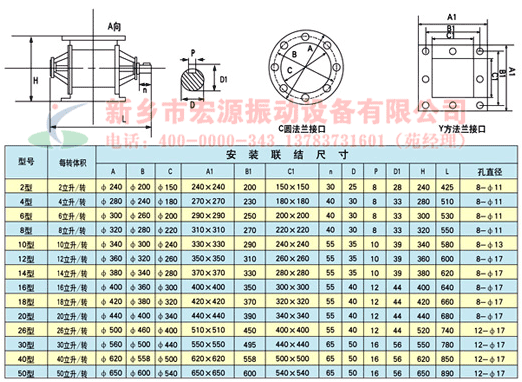

YJD-HX型葉輪給料機技術參數及外形尺寸
Type YJD-HX Outline dimensions and parameters

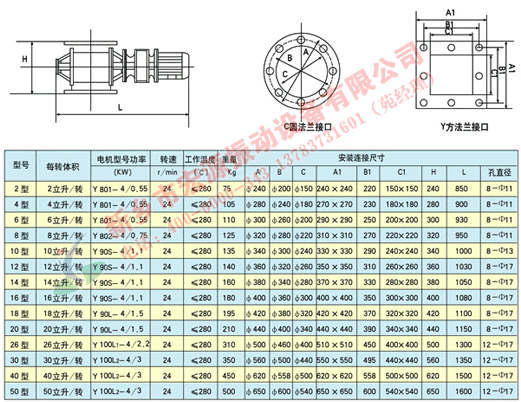

YCJ-H型葉輪給料機技術參數機外形尺寸
Type YJD-H Outline dimensions and parameters
