U型螺旋輸送機
U screw conveyor is suitable for conveying various powder, granulated and small lump materials, such as flour, corn, sand pulverized coal, cement, and all kinds of small pieces of coal and rock, etc.U screw conveyor is not suitable for conveying to caking big viscosity and corrosive materials, as well as some special operation requirements.Such as mixing, stirring, screw conveyor working environment temperature in the range of 20 + 50, conveying material temperature is small. At the end of 200, the general layout in the form of level and tilt is not more than 20.GX fixed screw conveyor is widely used in chemical building materials of food and other departments of a conveying equipment.

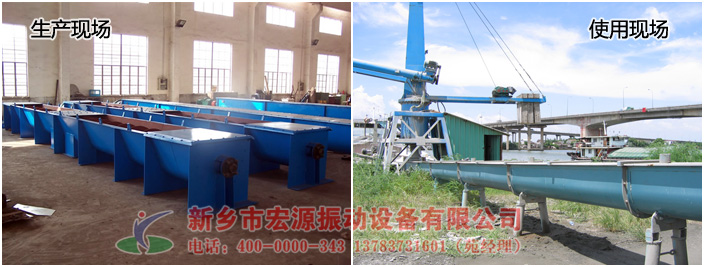

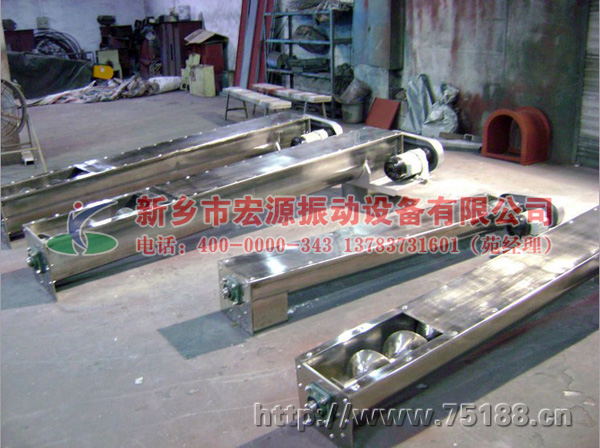

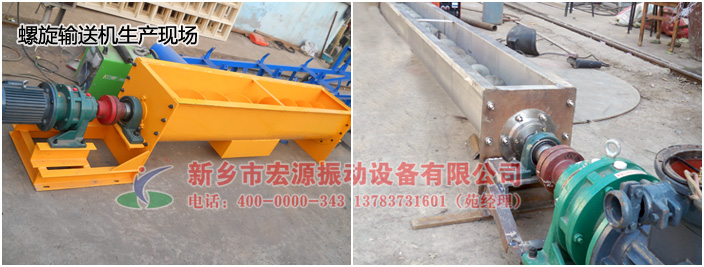

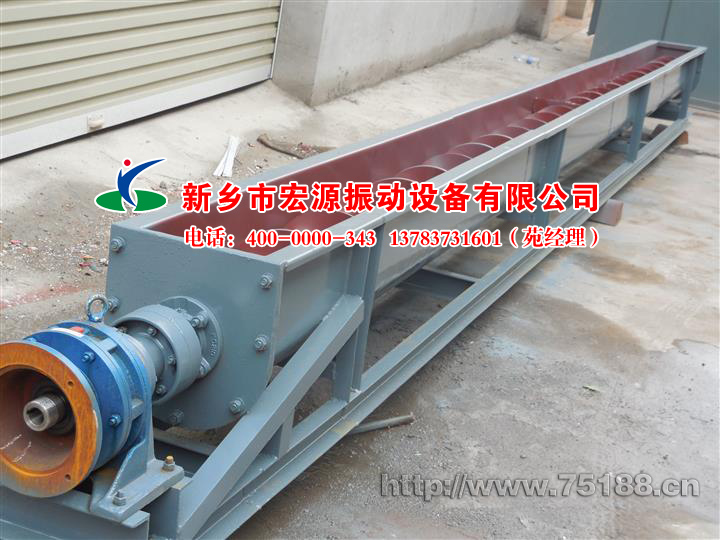

U型旋輸送機現場圖片
Screne drawing
U型螺旋輸送機視頻展播
Animation shown
U型螺旋輸送機工作特點
1、承載能力大、安全可靠。
2、適應性強、安裝維修方便、壽命長。
3、整機體積小、轉速高、確�？焖倬鶆蜉斔�。
4、密封性好、外殼采用無縫鋼管制作，端部采用法蘭互相連接成一體，剛性好。
Features
1, large carrying capacity, safe and reliable.
2, strong adaptability, easy installation and maintenance, long service life.
3, the machine is small in size, high speed, ensure rapid delivery uniformity.
4, good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.
U型螺旋輸送機產品特點
1、高效率的輸送：小直徑、高轉速、變螺距的螺旋體設計，確保產品在工作過程中順暢、快速、均勻上料。
2、隨意的布置：輸送機的外殼采用優質無縫鋼管通過法蘭各段連接為整體，整體剛性好，無論是水平，還是大傾角均可連續輸送，并可直接與其配套的設備連接固定，無需地基基礎，充分利用空間，移動、拆裝十分方便。
3、可靠的密封：潤滑密封可靠無滲漏，既無浪費物料現象，又創造了良好的工作環境。
4、多元化的聯接：進、出料口可采用萬向節、布袋、法蘭聯接方式，還可與我廠生產的蝶閥、插板閥組合聯接。
5、創新的設計：先進合理的設計，結合先進制造工藝和完善的質量保證體系，使其具有體積小，承載轉矩大、噪音低、不滲油等顯著優點。
Characteristic
1, high efficiency of delivery: small diameter, high speed, varying pitch helix design, ensure that the product in the process of work smooth, rapid and uniform loading.
2, random arrangement: conveyor of the shell is made of high quality seamless steel tube by flange for whole paragraphs connection, rigid good, the whole level, or can be continuous transmission of large dip Angle, and can be connected directly with matching equipment fixed, without foundation, make full use of space, mobile, tear open outfit is very convenient.
3, reliable sealing, lubrication reliable sealing with no leakage, no waste of materials, and created a good working environment.
4, diversified connection: inlet and discharging mouth can use universal joint, bag, flange connection, but also with our factory production of butterfly valve, flashboard valve combination connection.
5, innovative design, advanced and reasonable design, combined with advanced manufacturing technology and perfect quality assurance system, make it has small volume, carrying large torque, low noise, low permeability oil etc.

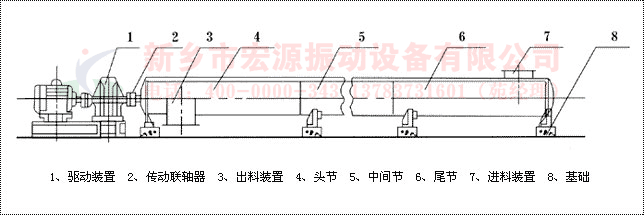

U型螺旋輸送機結構圖
Structures

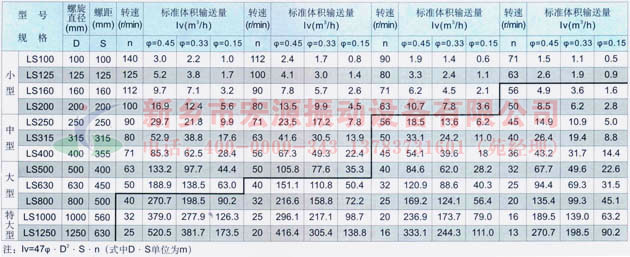

U型螺旋輸送機技術參數
Parameters

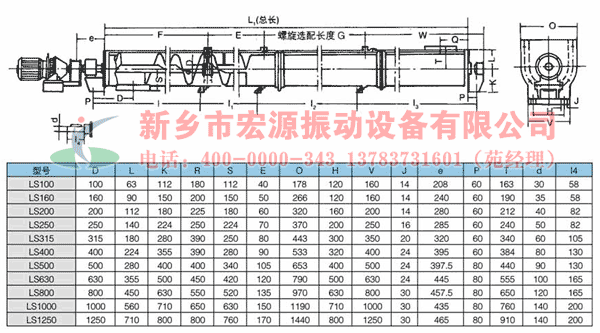

U型螺旋輸送機外形尺寸圖
Boundary Dimension

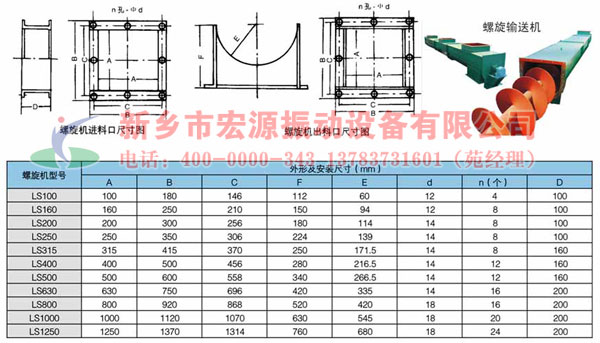

U型螺旋輸送機進出料口尺寸圖
Feed port and Discharge port Dimension
★我公司可根據用戶需要設計制造特殊型號規格的輸送機。
★我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準。
友情提示:螺旋輸送機不宜輸送易變質的、粘性大的、易結塊的物料，因?yàn)檫@些物料在輸送時會粘結在螺旋上，并隨之旋轉而不向前移動或者在吊軸承處形成物料的積塞，而使螺旋機不能正常工作。LS型螺旋機螺旋直徑從200毫米到500毫米，共有五種規格，長度從4米到70米，每隔0.5米一檔，選型時符合標準公稱長度，特殊需要可在選配節中另行提出。
★ My company can design and manufacture according to user needs special specifications of the conveyor.
★ For all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
Helpful hints: screw conveyor is unfavorable and transportation of perishable materials, big viscosity, easy to agglomerate, because these materials in the transmission will be binding on the screw, and then rotate and does not move forward or in suspension bearing formation material product plug, and make the screw machine can't work normally.LS screw machine screw diameter from 200 mm to 500 mm, with a total of five kinds of specifications, the length from 4 meters to 70 meters, one every 0.5 meters, conform to the standard model selection of the nominal length, special needs can be separately in the matching section is put forward.
