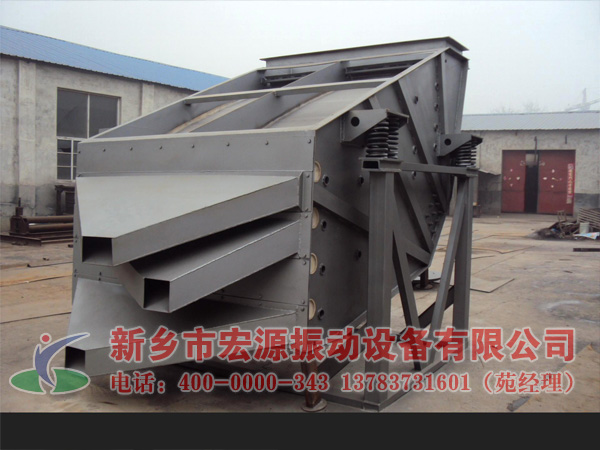

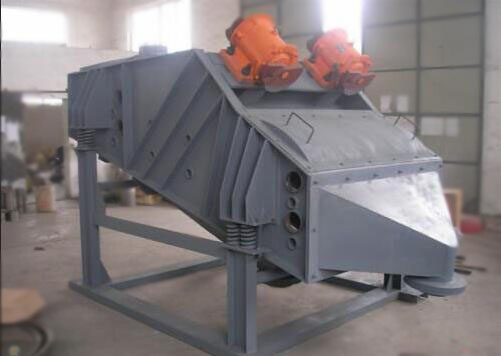

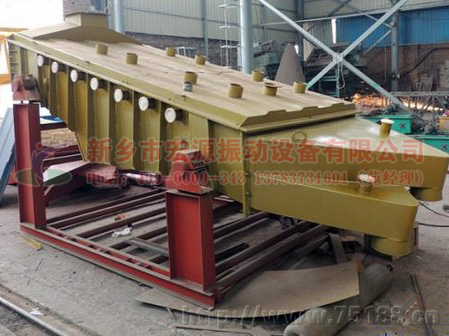

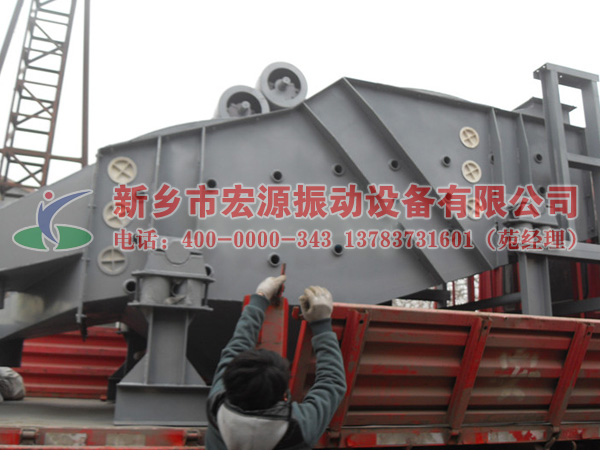

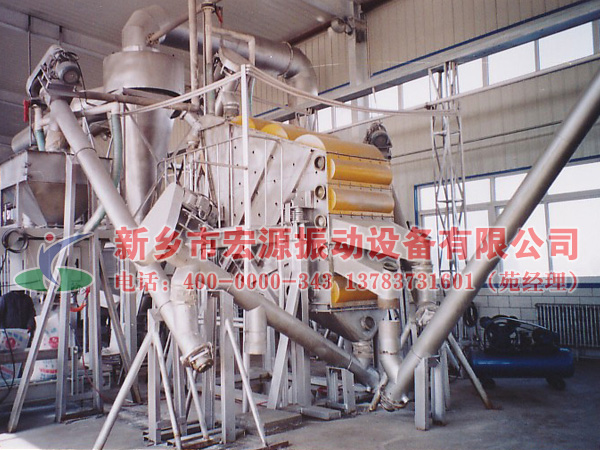

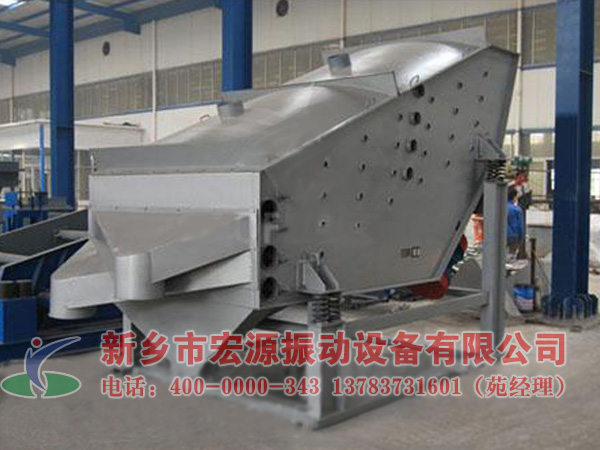

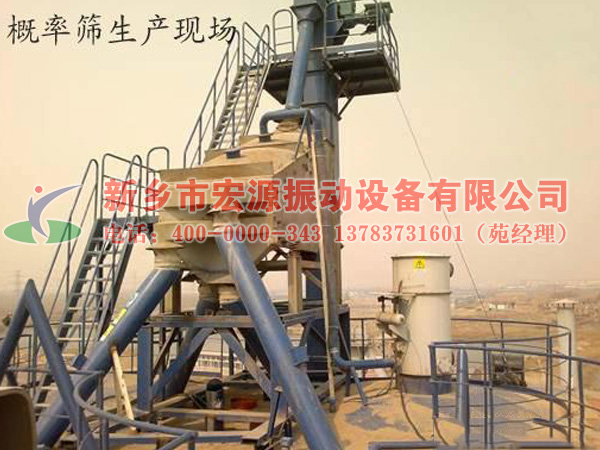

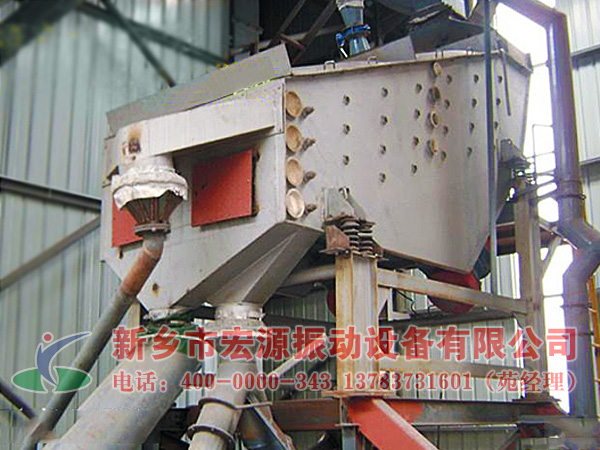

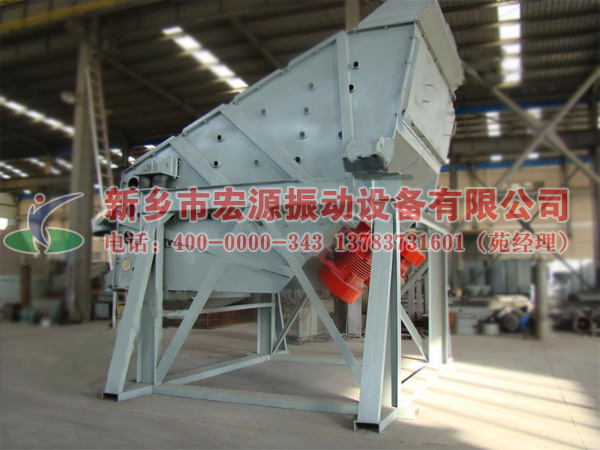

概率篩圖片

Photos

概率篩產品概述

    概率篩是一種能動地利用概率篩分原理的篩分機。通常所說的概率篩是振動概率篩，其篩面是靠激振裝置進行直線振動的。這種概率篩目前已廣泛地應用于冶金、建材及煤炭等工業部門，用于對中、細粒物料的粒度分級。振動概率篩與變通振動篩在結構上的主要區別是，振動概率篩采用多層（一般為3～6層）、大傾角（一般為30°～60°）、大篩孔（篩孔尺寸是分離粒度的2～10倍）的篩面。

Product overview
    Probability screen is a kind of active use of probability sizing screen of the principle of extension.Commonly referred to as the probability of vibrating screen the screen surface is established by linear vibrating excitation device.This probability screen has been widely used in metallurgy, building materials and coal industries, used for medium and fine grained material particle size grading.Probability of vibration screen with flexible vibrating screen is the main difference in the structure, probability of vibrating screen using multi-layer (usually for 3 ~ 6 layer), large dip Angle (30 ° ~ 60 °), large mesh (screen mesh size is 2 ~ 10 times the separation size of screen surface.
    概率篩分機是一種新型高效的篩分設備，其篩箱運行軌跡為直線。該系列篩機系概率理輪與工程實際有機結合的成功典范，其全新的設計理念和獨特的結構及篩分原理成就了概率篩幾近完美的篩分效果，具有廣闊的應用前景。
    Probability screen machine is a new type of high efficient screening equipment, its screen box running track is a straight line.This series of machine is probability theory the successful model of organic combination with the engineering practice, its new design concept and unique structure and screening principle accomplished probability screen nearly perfect screening effect, has a broad application prospect.
    概率篩，是以道碴沿篩面相對滑動的原理和鏈結傳動的多邊形效應為依據而設計的鐵路道碴清篩機上使用的新型篩分機構。概率篩(直線概率篩)采用比篩分粒度大的篩孔，對物料進行分級，由框架、一組多層互相重疊，坡度自上而下遞增，篩孔大小遞減的篩面和兩個振動電機組成。整個設備安裝在一組彈性原件上，通過激振電機回轉，篩面獲得高頻振動。
     Probability screen, based on the principle of the ballast along the screen surface relative sliding and link transmission designed on the basis of the polygon effect of railway ballast cleaning sieve machine using a new type of sieve.Probability screen(linear probability)using bigger than screening particle size of mesh, grading, the supplies by the framework, a set of multi-layer overlap each other, increasing gradient from top to bottom, decreasing mesh size of screen surface and two vibration motor.The entire device installed in a group on the original elastic, through rotary vibration motor, screen surface to obtain the high frequency vibration.



概率篩工作原理動畫

Animation shown

概率篩技術參數

Parameters

型號

篩面

物料粒度

驅動電機

振次（1/min）

雙振幅

生產能力（t/h）

篩分效率

篩面層數

篩面結構

分級粒度

篩面面積（m²）

篩面傾度（°）

型號與規格

功率

GLS0615

2-8

編  織  網

~50

0.9n

5--30

≤50

YZ08-6

055×2

960

5--8

15-50

≥95％

GLS0820

1.6n

YZ010-6

0.75 ×2

15-50

CLS1018

1.8n

YZ016-6

1.1×2

30-120

GLS1020

2.0n

YZ016-6

1.1×2

30-120

GLS1224

2.9n

YZ020-6

1.5×2

30-120

GLS1530

4.5n.

YZ040-6

3.0×2

30-160

GLS1536

5.4n

YZ040-6

3.0×2

30-160

GLS1830

5.4n

YZ040-6

3.0×2

30-180

GLS1845

8.1n

YZ040-6

3.0×2

30-180

GLS2030

6.0n

YZ050-6

3.7×2

50-200

GLS2045

9.0n

YZ050-6

3.7×2

50-200
