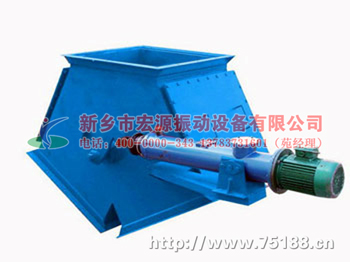

DSF-A（B、C、D、E）型 電液動三通分料器采用了電液推桿作動力源。因其具有自動過載保護性能,當運行受阻時，油路中壓力增高到調定的限額，溢流閥迅速而準確地溢流，實行過載保護。電機運轉在額定值內不會燒毀。當推桿運行至調定行程終端時，電液推桿油路集成塊中設計了自鎖機構，電機停止，活塞桿則自鎖在此位置上，處于保壓狀態。
    其中DSF-A（B）型電液動三通分料器可用于物料換向/分流。且允許在有料流通過時換向；DSF-C（D、E）型電液動三能分料器可用于物料換向分流，并且有閘門的功能；同時控制物料切斷或同時流通的作用。工作原理是通過電液推桿帶動三能分料器的轉軸機構，來控制翻板翻轉，達到物料換向的作用。本產品可以直接將上部法蘭接在膠帶機頭部漏斗下或其它設備下料接口處，其一般用于在堆比重小于等于2.8t/m3且磨琢性較大、工作環境惡劣的條件下�？紤]到其結構尺寸大、重量大(耐磨襯板較厚)，上部法蘭無法承受自身重量，使用須根據實際情況另加支承。
    DSF - (A, B, C, D, E) three reduction to common denomiator type electric hydraulic device uses electric hydraulic draw stem as a power source.Because of its automatic overload protection performance, when run up, increases pressure in the oil to the setting of limits, the overflow, overflow valve quickly and accurately for overload protection.The motor operates within the rating will not burn.When push rod run to the set itinerary terminal, electric hydraulic draw stem hydraulic integrated block design the self-locking mechanism, motor stops, the piston rod is latching position on this, in the state of pressure keeping.
   The DSF - A (B) three reduction to common denomiator type electric hydraulic device can be used for material reversing/shunt.And allow the obsolete material circulation commutation;DSF - C (D and E) type electric hydraulic SanNeng distributor plastic can be used for reversing, and has the function of the gate;At the same time control the material to cut off or the role of circulation at the same time.Working principle is through the electric hydraulic draw stem drive SanNeng the distributor rotor institutions, to control turning, turning, reach the role of material commutation.This product can be directly to the upper flange joint under tape sports a funnel or other equipment, material interface, its are commonly used in bulk density less than or equal to 2.8 t/m3 and grinding cut larger, under the condition of poor working conditions.Considering the structure size, weight, big (wearing plate thicker), the upper flange can't bear its weight, use must be according to actual circumstances, plus support.

適用介質	含塵固體顆�；蚍哿�	電源電壓	380V50HZ
適用溫度	≤350℃	調節特性	常規情況二位開關式
電液推桿型號	DYT系列		特殊情況4-20m A電信號
