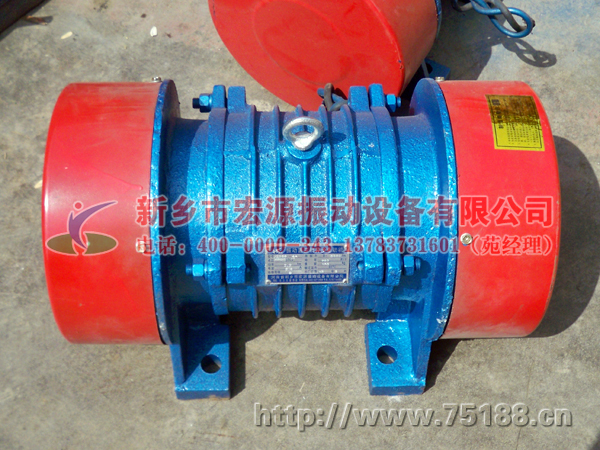

JZO振動電機的工作原理

    振動電機學名是振動源三相異步電動機,是利用安裝在轉子軸兩端各一組的可調偏心塊高速旋轉產生的離心力得到激振力,激振力可以無級調節;既將動力源與振動源合為一體的電動旋轉式激振器.

Product overview
 vibration motor scientific name is vibration source three-phase asynchronous motor , is installed on both ends of the rotor shaft by a set of adjustable eccentric block high-speed centrifugal force produced by the rotation of vibration force, vibration force can be adjusted;Both will power source and vibration source of electric rotary vibrator.

JZO振動電機的特點

1.機體重量輕,體積小,結構簡單,安裝使用非常方便
2.全封閉結構,適用于任何無防爆要求的粉塵條件工作環境
3.可多機組合成各種振動形式,以適應各種作業要求
4.可通過調節偏心塊角度來實現無級調節

    JZO振動電機是我國振動行業開發研制的第一個振動電機系列,經過長時間的改進和技術革新,目前基本上占領了振動篩電機的主流市場.JZO振動電機規格型號齊全, 質量穩定可靠,激振力70kg—12000kg,功率0.075—9kw,全銅線繞組,可供客戶選擇。

Features
1. The body weight, small size, simple structure, it is very convenient to install and use
2. The product is fully closed structure, is applicable to any kind of explosion-proof dust conditions required by the work environment
3. The unit can be more than the synthesis of various vibration mode, to adapt to the requirements
4. Can be achieved by adjusting the Angle of eccentric block to stepless adjustment
JZO vibration motor vibration is our country industry developed the first vibration motor series, after a long improvement and technical innovation, the mainstream of the market at present basically occupied the vibrating screen motor. JZO vibration motor with complete specifications, quality stable reliable, the exciting force of 70 kg, 12000 kg, 0.075 -- 9 kw power, the copper wire winding, for customers to choose.

JZO振動電機的應用范圍

 JZO振動電機的激振力高、能耗小、噪音低、壽命長,廣泛應用于直線振動篩、振動輸送機、振動給料斗、振動給料機，振動落砂機、振動破碎機、振動烘干機、振動冷卻機、料倉振動防閉塞裝置等各種振動機械,是水電建設、火力發電、建筑、建材、化工、采礦、煤炭、冶金、輕工等工業部門的理想設備。

Applications
  JZO high vibration motor vibration force, low energy consumption, low noise, long service life, widely used in the linear vibrating screen, vibration conveyor, vibration hopper, vibrating feeder, vibration shakeout machine, crusher, vibration dryer, vibration cooling machine, vibration of silo block all sorts of mechanical vibration, such as hydropower, thermal power, construction, building materials, chemical, mining, coal, metallurgy, light industry and other industrial sectors of the ideal equipment.

JZO振動電機技術參數

Parameters

型號	激振力(KN)	功率	電流(A)	振頻(r/min)	安裝尺寸										重量(Kg)
					F	E	G	H	I	L	M	N	n	φd
JZO-0.7-2	0.7	0.075	0.23	3000	152	116	22	63	160	220	175	140	4	8	15
JZO-1.5-2	1.5	0.15	0.47		180	126	22	75	178	280	214	150	4	12	18
JZO-2.5-2	2.5	0.25	0.79		180	140	28	80	178	290	214	168	4	12	21
JZO-5-2	5	0.4	1.24		220	176	35	90	216	330	270	210	4	14	34
JZO-8-2	8	0.75	2.03		236	180	25	170	275	415	292	249	4	18	50
JZO-16-2	16	1.5	4.74		270	224	30	190	350	530	330	298	4	20	95
JZO-30-2	30	3	9.5		310	220	30	160	350	540	380	280	4	30	135
JZO-1.2-4	1.2	0.08	0.248	1500	152	116	22	63	160	260	170	140	4	8	15
JZO-2.5-4	2.5	0.1	0.32		180	140	28	80	176	290	214	168	4	12	25
JZO-5-4	5	0.2	0.6		220	176	35	90	216	365	300	208	4	14	40
JZO-8-4	8	0.4	1.24		236	180	25	170	275	415	292	250	4	18	53
JZO-16-4	16	0.75	2.3		270	224	30	190	350	530	330	298	4	20	98
JZO-32-4	32	1.5	4.74		350	180	30	160	350	510	430	280	4	30	170
JZO-50-4	50	2.2	6.96		390	195	30	220	473	610	480	311	4	34	228
JZO-75-4	75	3.7	11.4		440	260	35	255	533	750	520	384	4	34	313
JZO-100-4	100	5.5	17.4		440	260	45	260	550	750	520	410	4	37	340
JZO-5-6	5	0.4	1.24	1000	220	176	20	120	240	360	270	249	4	14	42
JZO-10-6	10	0.75	2.3		236	180	25	170	289	470	292	250	4	18	70
JZO-18-6	18	1.1	3.4		270	224	25	190	320	530	320	270	4	20	115
JZO-20-6	20	1.5	4.6		270	224	35	175	360	530	345	310	4	20	120
JZO-30-6	30	2.2	6.43		350	180	33	190	400	510	430	350	4	30	180
JZO-40-6	40	3	9.2		350	180	33	190	400	535	430	350	4	30	200
JZO-50-6	50	3.7	11.4		390	195	30	225	473	610	480	311	4	34	262
JZO-75-6	75	5.5	17.4		440	260	35	255	533	750	520	384	4	34	420
JZO-100-6	100	7.5	23.74		440	260	40	260	605	750	620	430	4	37	450
JZO-120-6	120	9	26		440	280	45	260	550	750	520	430	4	37	480

JZO振動電機使用注意事項

    JZO振動電機為三相380V,50HZ異步電動機，封閉自冷式、臥式安裝，在連續工作時對周圍環境要求很高，要保證周圍空氣中不得含腐蝕性及爆炸性氣體，環境溫度不得超過40度，以免造成振動電機燒毀。

Notes
  JZO vibration motor is three-phase 380v, 50 hz asynchronous motor, enclosed self-cooling type, horizontal installation, in continuous work is very demanding on the surrounding environment, to ensure that must not be corrosive and explosive gases in the surrounding air, the environment temperature shall not exceed 40 degrees, so as not to cause vibration motor burn down.
