TD75/DTⅡ系列皮帶輸送機產品概述

    DTⅡ、TD75型皮帶輸送機由于輸送量大,結構簡單,維護方便,成本低,通用性強等優點,而被廣泛地應用在冶金、礦山、煤炭、港口、交通、水電、化工等部門,進行裝車、裝船、轉載或堆積各種常溫狀態的松散密度為500~2500kg/m3各種散狀物料或成件物品.由單機或多機組合成運輸系統來輸送物料,根據工藝要求可布置成水平或傾斜的形式,DTⅡ型皮帶輸送機除了可滿足水平或傾斜輸送要求外,還可采用帶凸弧段、凹弧段與直線段組合的輸送形式.輸送機允許輸送的物料塊度取決于帶寬、帶速、槽角和傾角,也取決于大塊物料出現的頻率.該輸送機適用的工作環境溫度一般為-25~+40℃.我公司還生產輕型皮帶輸送機和移動式輸送機。

    DTⅡ, TD75 belt conveyor, bue to its simple structure, easy maintenance, low cost, high universality, etc, and is widely used in metallurgy, mining, coal, port, transportation, water and electricity, chemical industry and other departments, loading, shipping, reproduced or pile up all kinds of room temperature state of loose density of 500 ~ 2500 kg/m3 or loose materials for various items. By single or multiple synthetic transportation system for conveying material, according to the technological requirements can be decorated in the form of horizontal or inclined, DT Ⅱ type belt conveyor besides can meet the requirements of horizontal or inclined conveyor, also can be used with convex segmental arc, concave segmental arc and straight line combination form of transport. Conveyor allows transport blocks of materials depends on the bandwidth, belt speed, groove Angle and inclination Angle, also depends on the frequency of big materials. The conveyor is generally applied working environment temperature is 25 ~ + 40 ℃. Our company also produces light and portable conveyor belt conveyor.

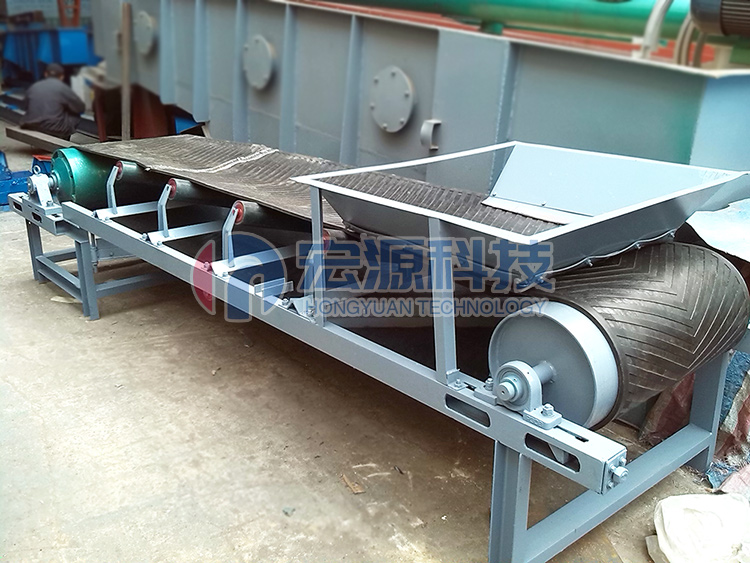

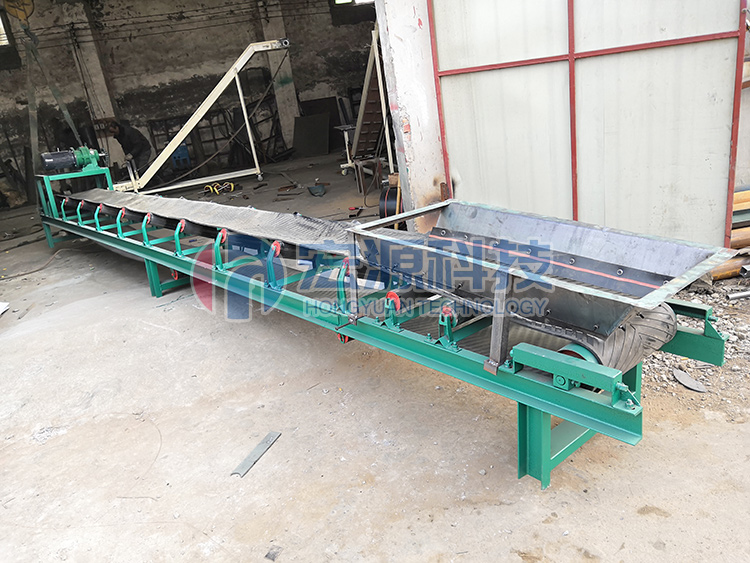

TD帶式輸送機現場圖片

煤礦用皮帶輸送機
belt conveyor for coal

TD系列帶式輸送機基本結構

1.驅動部分:系由裝置在型鋼焊成的底座上的電動機-->高速聯軸器-->減速器-->減速聯軸器組成。根據要求:驅動裝置設有左裝和右裝兩種,另外本公司配有功率1.5KW-13KW,速度0.80、1.0、1.25的油冷式電動滾筒。
2.滾動部分:分傳動滾筒和改向滾筒兩大類。
3.托輥部分:分槽形、平行、調心和緩沖托輥等。
4.清掃部分:分彈簧清掃器和空段清掃器。
5.卸料部分:分固定式犁式卸料器和電動卸料器。
6.制動部分:有帶式逆止器和滾柱逆止器兩種。
7.附件:在罩殼、導料槽、漏斗等。

Structures
1. The drive part: by device in steel welded at the base of the motor - > high speed coupling-> reducer high speed>coupling.According to the requirement: drive operates in both left and right, in addition, our company is equipped with power 1.5 KW - 13 KW, speed of 0.80, 1.0, 1.25, oil cooled electric drum.
2. Rolling parts: transmission roller and redirection roller two kinds big.
3. The rollers parts: trough, parallel, self-aligning and buffer roller, etc.
4. Clean the parts: spring sweeper and empty section of the sweeper.
5. Unloading parts: points fixed plough tripper and electric discharger.
6. Brake parts: belt type non-return device and roller non-return device two kinds.
7. Accessories: in the casing, guide chute, hopper etc.

TD系列帶式輸送機工作特點

    DTⅡ、TD75型皮帶式輸送機按其支架結構有固定式的移動式兩種：按輸送帶材料有膠帶、塑料帶和鋼芯帶之分。皮帶輸送機的工作環境溫度一般在-10oC--+40oC之間，要求物料溫度不超過70oC；耐熱橡膠帶可輸送120oC以下的高溫物料。物料溫度更高時不宜采用膠帶輸送機。當輸送具有酸性堿性油類物質和有機溶劑等成分的物料時，需采用耐油、耐酸堿的橡膠帶式塑料帶。帶式輸送機的帶寬可分為：500、650、800、1000、1200和1400mm。用戶可根據帶式輸送機的輸送長度，物料的種類、容重、輸送量、輸送長度等諸因素通過計算確定輸送機的布局以及所選用的膠帶寬度、帆布層數和膠帶厚度。

Work Features
   DTⅡ,TD75 belt conveyor according to the framework has a fixed mobile two kinds: according to the conveyor belt material with adhesive tape, plastic zone and the points of steel core belt.General belt conveyor working environment temperature, between 40 oc to 10 oc - + requirements material temperature does not exceed 70 oc;Heat resistant rubber belt transporting materials in the high temperature under 120 oc.Material at higher temperature is unfavorable use belt conveyor.When conveying oily materials with acidic, alkaline and organic solvents, such as the composition of the material, the need to adopt can withstand oil, acid and alkali resistant rubber belt type plastic belt.The bandwidth of the belt conveyor can be divided into: 500, 650, 800, 650, 800 and 1400 mm.Users according to the conveying length of belt conveyor, the types of materials, such as bulk density, throughput, transmission length factors through the calculate and determine the layout of conveyor and chooses the tape width, canvas layer number and thickness of the tape.

TD系列帶式輸送機主要技術參數表
Parameters

注:1、輸送能力Qv值系按水平運輸，動堆積角θ為20°，托輥槽角λ為30°時計算的。
2、帶速（4.5）、（5.6）m/s為非標準值，一般不推薦使用。

TD系列皮帶式輸送機布置有下面幾中基本形式:
1.水平輸送機 2.傾斜輸送機 3.帶凸弧曲形段輸送機 4.帶凹弧曲形段輸送機 5.帶凹弧及凸弧曲形段輸送機。

Note: 1, the transmission capacity Qv value according to the level of transportation, dynamic accumulation Angle theta is 20 °, 30 ° roller groove Angle lambda for calculation.
2, belt speed (4.5) and (5.6) m/s as a standard, is generally not recommended.
TD series in the arrangement of belt conveyor has the following a few basic form:
Horizontal conveyor 2. Tilt conveyor 3. Belt convex arc curvy paragraph 4. Belt concave arc curvy paragraph 5. Belt arc concave and convex arc curvy.

傳動型式與傳遞功率的關系
Transmission type and transfer power relations

備注:除電動滾筒直接傳動外，其余傳動型式均配相應的減速器。
Remark: in addition to the electric cylinder direct drive, the rest of the driving type match with corresponding gear reducer.
